RC 35T 540 Brushed Motor DC 7.4V

MGLORY DC-RS 540 Brush DC Motor

  • brushed motor armature
  • brushed dc motor with gearbox
  • brushed dc motor with encoder
  • brushed motor commutator
  • brushed motor armature
  • brushed dc motor with gearbox
  • brushed dc motor with encoder
  • brushed motor commutator

540 brushed motor is permanent magnet DC motor. The housing of the RS 540 DC motor is black coating. Cooling fan supported. It is for hobby, RC car.


Specifications of MGLORY RS 540 DC Motor Brushed


Model NumberRS540
ConstructionPermanent Magnet
CommutationCarbon Brush
Material of the HousingSECD
Motor Housing ShapeRound
Motor CoverIron
Motor Diameter35.8mm
Motor Length60.0mm
Shaft Diameter3.175mm
Shaft MaterialCarbon Steel
BearingOil Bearing
PowerDC
RotationCCW
Cooling FanYes
Motor Weight160g Around

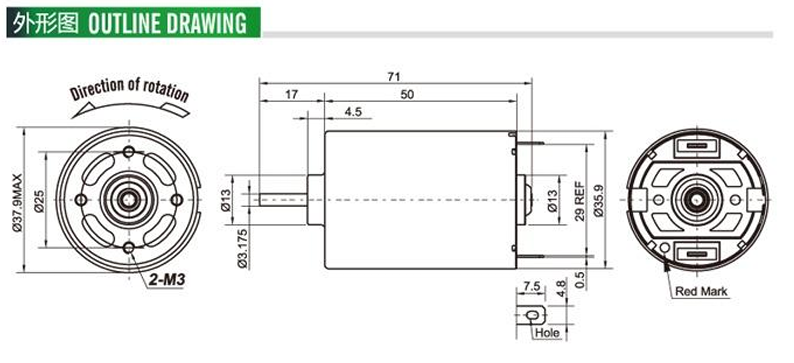

Dimensions of MGLORY RS 540 DC Motor Brushed

DC RS540


Technical Reference Data of MGLORY RS 540 DC Motor Brushed


ModelVoltageNo LoadAt Maximum EfficiencyStall
SpeedCurrentSpeedCurrentTorqueOutputEFFTorqueCurrent
rpmArpmAmN.mW%mN.mA
RS540- 75217.2145001.5127009.938.251.27235479.8
RS540- 455312.0102000.684003.634.630.97224622.7

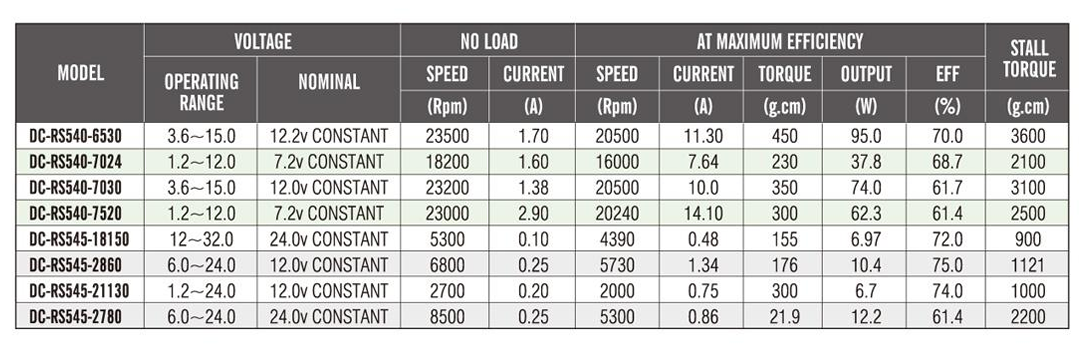

Note: It's only typical technical data for reference. Special requirement can be customized, please refer to below chart.


Electrical Parameter of MGLORY RS 540 DC Motor Brushed

Voltage Range3V to 36V
Speed Range2000rpm to 25000rpm
Power Range0.5W to 85W
Torque Range3mN.m to 40mN.m
Stall Torque Range40mN.m to 250mN.m
